All internal gears are made of high-grade special alloy steel, precision machined and carburized quenching treatment.The unit is internally filled with high-grade lubricating oil at the time of shipment, no maintenance required.
▍Parameter
| Three-phase Gear Motor | Single-phase Gear Motor | ||
| Three-phase Gear Motor | Gears | All internal gears are made of high-grade special alloy steel, precision machined and carburized quenching treatment | |
| Gearbox Material | Aluminum alloy die-casting (shaft diameter 18, 22, 28) ductile iron casting (32, 40, 50) | ||
| Lubricating Oil | The unit is internally filled with high-grade lubricating oil at the time of shipment, no maintenance required | ||
| Motor | Power Supply | 220/380V | 220/380V |
| Frequency | 50/60 Hz | 50/60 Hz | |
| Cooling Method | Totally enclosed fan-cooled | Totally enclosed fan-cooled | |
| Starting Method | Direct online starting | Direct online starting | |
| Enclosure Material | High-grade aluminum alloy | ||
| Insulation Class | F and B class insulation | ||
| Protection Class | Aluminum junction box IP54, iron junction box IP20 | ||
| Brake | Operating Mode | Non-excited brake (fail-safe brake) | |
| Voltage | DC90-110V with AC220V, AC110V rectifier | ||
| General Environment | Temperature | -10°C to +40°C | |
| Humidity | Below 90% (non-condensing) | ||
| Location | Indoor, below 1000 meters altitude | ||

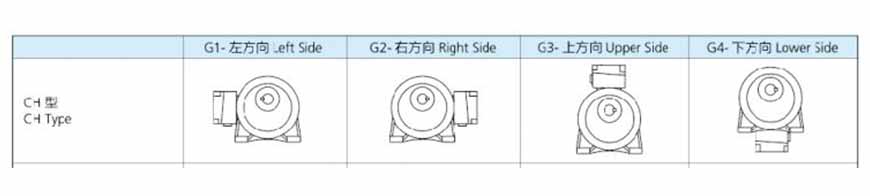

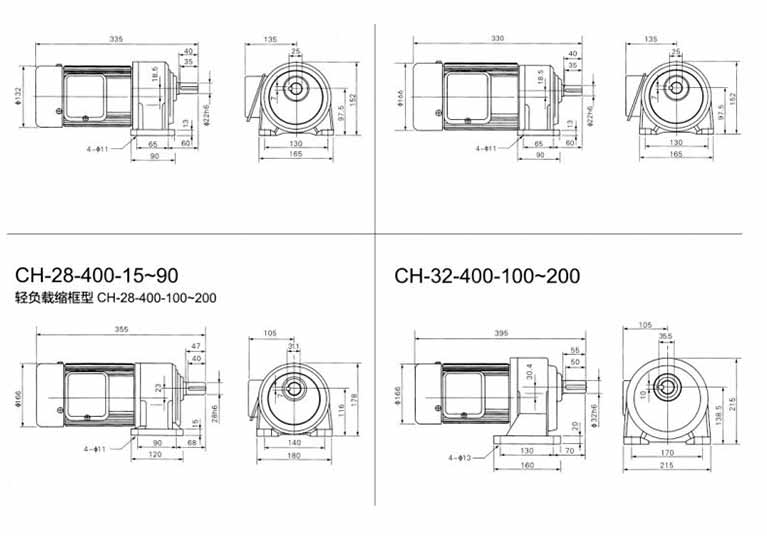

▍Drawing
▍Packaging & Shipping
 |  |
