Expertly engineered for unparalleled durability and adaptability, the WP Series Right Angle Cast Iron Worm Gear Reducer stands as a superior choice for demanding motion control tasks. Constructed from high-strength cast iron, this rugged housing ensures exceptional heat dissipation and robust resistance to corrosion, making it an ideal fit for tough industrial settings.
▍Product Features
Expertly engineered for unparalleled durability and adaptability, the WP Series Right Angle Cast Iron Worm Gear Reducer stands as a superior choice for demanding motion control tasks. Constructed from high-strength cast iron, this rugged housing ensures exceptional heat dissipation and robust resistance to corrosion, making it an ideal fit for tough industrial settings. Its 90° right-angle design maximizes space efficiency, allowing for effortless integration into compact machinery, conveyor systems, and sophisticated automation setups.
At the heart of this remarkable series is a precision-engineered worm and worm gear pair, providing a smooth and exceptionally quiet operation with an impressive high torque capacity (up to 500 Nm) and versatile reduction ratios from 5:1 to 100:1. The self-locking feature of the worm gear enhances safety by preventing backdriving, which is crucial for applications demanding precise positional stability.
What truly distinguishes the WP Series is its customizability. Select from various configurations such as flange, foot, or shaft-mounted options, with customizable output shafts (solid/hollow), input adapters suitable for motors or belts, and IP65-rated seals that offer protection against dust and water ingress. Tailored ratios, specialized surface treatments (paint/galvanization), and custom mounting brackets are also available to meet your project's specific requirements.
Specifically designed for industries like manufacturing, mining, and logistics, the WP Series is exceptional in applications such as conveyor drives, lifting equipment, and packaging machinery. Each unit undergoes stringent testing to ensure efficiency (up to 85%) and reliability, all supported by a robust 2-year warranty.
Rely on the WP Series to convert power into precision, merging durability with ultimate flexibility.
Key Highlights: Solid cast iron construction | 90° right-angle efficiency | Self-locking mechanism | Fully customizable configurations | High torque capabilities | Reliable industrial-grade performance.
Ideal for engineers, OEMs, and maintenance teams in search of tailored motion solutions.
▍Parameter
| Attribute | Description |
| Model Range | WPA, WPS, WPO, WPX, WPDA, WPDS, WPDO, WPDX, WPW series, etc. (single - stage / double - stage / multi - stage) |
| Center Distance | 40mm ~ 250mm |
| Transmission Ratio | Single - stage: 1:5 ~ 1:100; Double - stage / multi - stage: 1:100 ~ 1:900 (customizable) |
| Input Power | 0.12kW ~ 33.2kW |
| Output Torque | 9N·m ~ 2745N·m |
| Input Speed | ≤1500r/min (recommended 600 ~ 1800r/min) |
| Efficiency | Single - stage: 70% ~ 85% (depending on the number of worm threads and lubrication conditions) |
| Installation Method | Foot - mounted, flange - mounted, torque - arm mounted; Input and output shafts can be arranged horizontally or vertically |

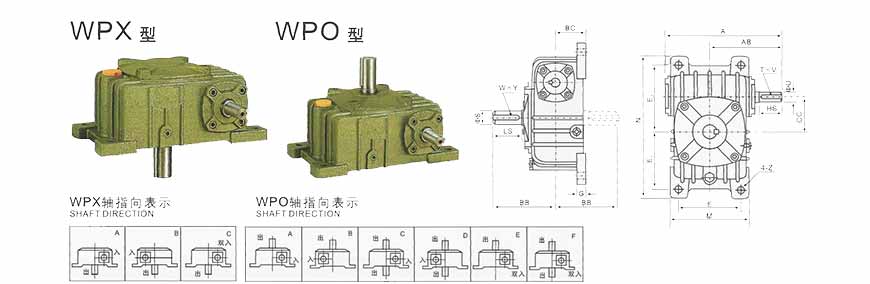

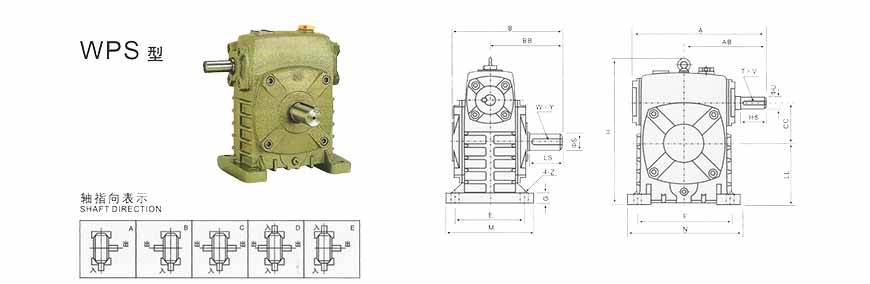

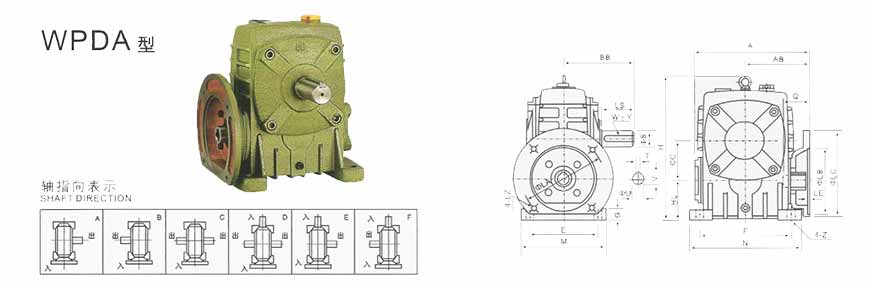

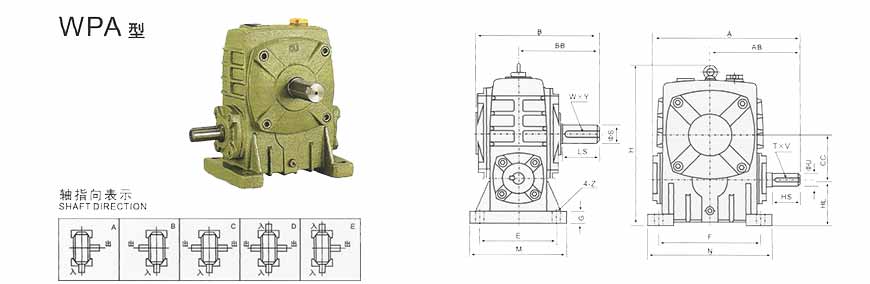

▍Drawing
