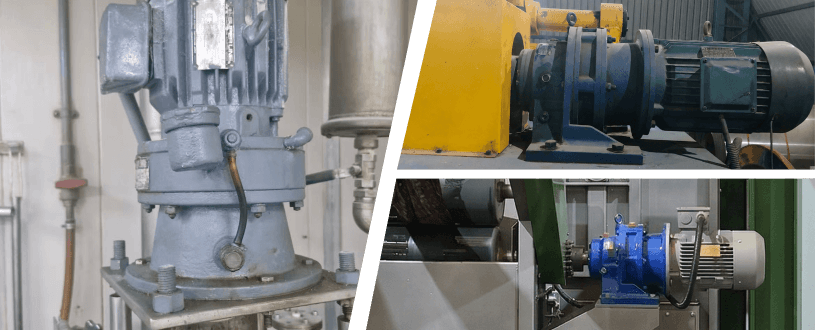

BL/XL Series Shaft Input Vertical Cycloidal Gearbox adopts a high-strength cycloidal pinwheel transmission structure with vertical shaft input design, providing high reduction ratio, large torque capacity, stable operation and excellent overload resistance. The vertical input structure simplifies equipment integration and is especially suitable for applications requiring compact installation, low-speed high-torque transmission and continuous heavy-duty operation. With a typical output torque range of 100–60,000 N·m and power range of 0.12–75 kW, it is widely used in lifting equipment, mixers, conveyors, chemical machinery, construction machinery and heavy industrial drive systems.
| Item | Specification |
| Product Series | BL/XL Series |
| Gear Type | Cycloidal Pinwheel Gear |
| Transmission Structure | Cycloidal Disc Transmission |
| Mounting Type | Vertical Mounted / Flange Mounted |
| Input Type | Shaft Input |
| Output Shaft Type | Solid Shaft / Hollow Shaft Optional |
| Housing Material | Cast Iron |
| Cycloidal Disc Material | Alloy Steel |
| Pin Gear Material | Hardened Steel |
| Lubrication | Grease or Oil Lubrication |
| Protection Grade | IP54 / IP55 Optional |
| Efficiency | Up to 94% |
| Ratio Range | 11–7569 |
| Power Range | 0.12–75 kW |
| Output Torque | 100–60,000 N·m |
| Installation Direction | Vertical Installation |
| Model | Frame Size | Ratio Range | Rated Power (kW) | Output Torque (N·m) |
| BL/XL1 | 1 | 11–87 | 0.12–1.5 | 100 |
| BL/XL2 | 2 | 11–121 | 0.25–3 | 300 |
| BL/XL3 | 3 | 17–187 | 0.55–5.5 | 800 |
| BL/XL4 | 4 | 17–289 | 1.5–11 | 2,000 |
| BL/XL5 | 5 | 23–473 | 3–22 | 5,000 |
| BL/XL6 | 6 | 29–7569 | 5.5–45 | 15,000 |
| BL/XL7 | 7 | 35–7569 | 11–75 | 30,000 |
| BL/XL8 | 8 | 35–7569 | 22–75 | 60,000 |
Note: Customized mounting dimensions, output shaft configurations, reduction ratios and special heavy-duty transmission solutions are available upon request.
