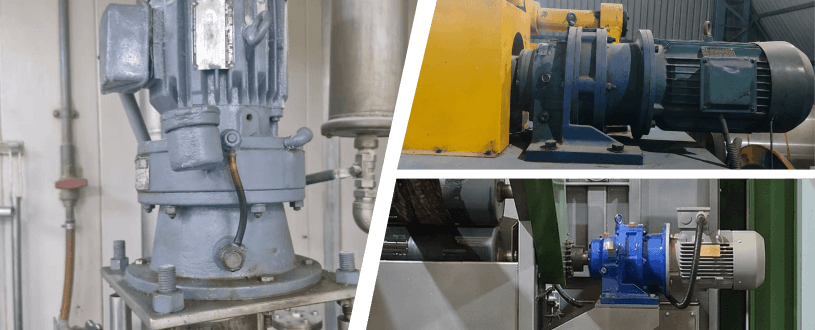

BLY/XLY Series Flange Mounting Cycloidal Gearbox with Motor adopts a high-strength cycloidal pinwheel transmission structure combined with a direct motor mounting design, providing an integrated drive unit with compact structure, easy installation, high torque capacity and reliable operation. The flange mounting structure simplifies equipment connection and improves installation flexibility, making it suitable for industrial applications requiring space-saving design, high reduction ratio and stable low-speed output. With a typical output torque range of 100–60,000 N·m and motor power range of 0.12–75 kW, it is widely used in conveyors, mixers, packaging machinery, chemical equipment, construction machinery and heavy industrial transmission systems
| Item | Specification |
| Product Series | BLY/XLY Series |
| Gear Type | Cycloidal Pinwheel Gear |
| Transmission Structure | Cycloidal Disc Transmission |
| Mounting Type | Flange Mounted |
| Input Type | Motor Direct Input |
| Output Shaft Type | Solid Shaft / Hollow Shaft Optional |
| Housing Material | Cast Iron |
| Cycloidal Disc Material | Alloy Steel |
| Pin Gear Material | Hardened Steel |
| Lubrication | Grease or Oil Lubrication |
| Protection Grade | IP54 / IP55 Optional |
| Efficiency | Up to 94% |
| Ratio Range | 11–7569 |
| Motor Power Range | 0.12–75 kW |
| Output Torque | 100–60,000 N·m |
| Installation Direction | Horizontal / Vertical Optional |
| Model | Frame Size | Ratio Range | Motor Power (kW) | Output Torque (N·m) |
| BLY/XLY1 | 1 | 11–87 | 0.12–1.5 | 100 |
| BLY/XLY2 | 2 | 11–121 | 0.25–3 | 300 |
| BLY/XLY3 | 3 | 17–187 | 0.55–5.5 | 800 |
| BLY/XLY4 | 4 | 17–289 | 1.5–11 | 2,000 |
| BLY/XLY5 | 5 | 23–473 | 3–22 | 5,000 |
| BLY/XLY6 | 6 | 29–7569 | 5.5–45 | 15,000 |
| BLY/XLY7 | 7 | 35–7569 | 11–75 | 30,000 |
| BLY/XLY8 | 8 | 35–7569 | 22–75 | 60,000 |
Note: Customized flange dimensions, motor specifications, output shaft configurations and special transmission solutions are available upon request.
