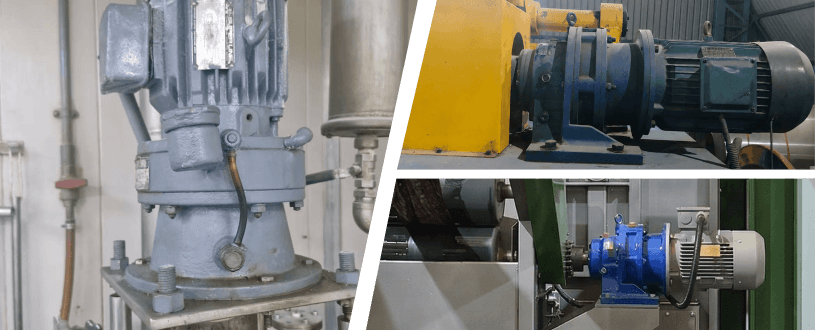

BWEY/XWEY Series Foot Mounting Two Stage Cycloidal Gearbox with Motor adopts a two-stage cycloidal pinwheel transmission structure combined with a stable foot mounting design and motor direct connection, providing a high-performance drive unit with ultra-high reduction ratio, large torque capacity and excellent overload resistance. The foot-mounted structure ensures strong mechanical support and flexible installation, while the two-stage cycloidal transmission expands the speed ratio range and improves low-speed high-torque output capability. With a typical output torque range of 500–100,000 N·m and motor power range of 0.37–90 kW, it is widely used in heavy conveyors, mixers, crushers, mining machinery, chemical equipment and large industrial transmission systems.
| Item | Specification |
| Product Series | BWEY/XWEY Series |
| Gear Type | Two Stage Cycloidal Pinwheel Gear |
| Transmission Structure | Two Stage Cycloidal Disc Transmission |
| Mounting Type | Foot Mounted |
| Input Type | Motor Direct Input |
| Output Shaft Type | Solid Shaft / Hollow Shaft Optional |
| Housing Material | Cast Iron |
| Cycloidal Disc Material | Alloy Steel |
| Pin Gear Material | Hardened Steel |
| Lubrication | Oil Lubrication |
| Protection Grade | IP54 / IP55 Optional |
| Efficiency | Up to 92% |
| Ratio Range | 121–7569 |
| Motor Power Range | 0.37–90 kW |
| Output Torque | 500–100,000 N·m |
| Installation Direction | Horizontal Installation |
| Model | Frame Size | Ratio Range | Motor Power (kW) | Output Torque (N·m) |
| BWEY/XWEY3 | 3 | 121–187 | 0.37–5.5 | 500 |
| BWEY/XWEY4 | 4 | 121–289 | 1.5–11 | 2,000 |
| BWEY/XWEY5 | 5 | 187–473 | 3–22 | 5,000 |
| BWEY/XWEY6 | 6 | 289–1213 | 5.5–45 | 15,000 |
| BWEY/XWEY7 | 7 | 473–2890 | 11–75 | 40,000 |
| BWEY/XWEY8 | 8 | 713–7569 | 22–90 | 70,000 |
| BWEY/XWEY9 | 9 | 1213–7569 | 45–90 | 100,000 |
Note: Customized mounting dimensions, motor specifications, output shaft configurations, reduction ratios and special heavy-duty transmission solutions are available upon request.
