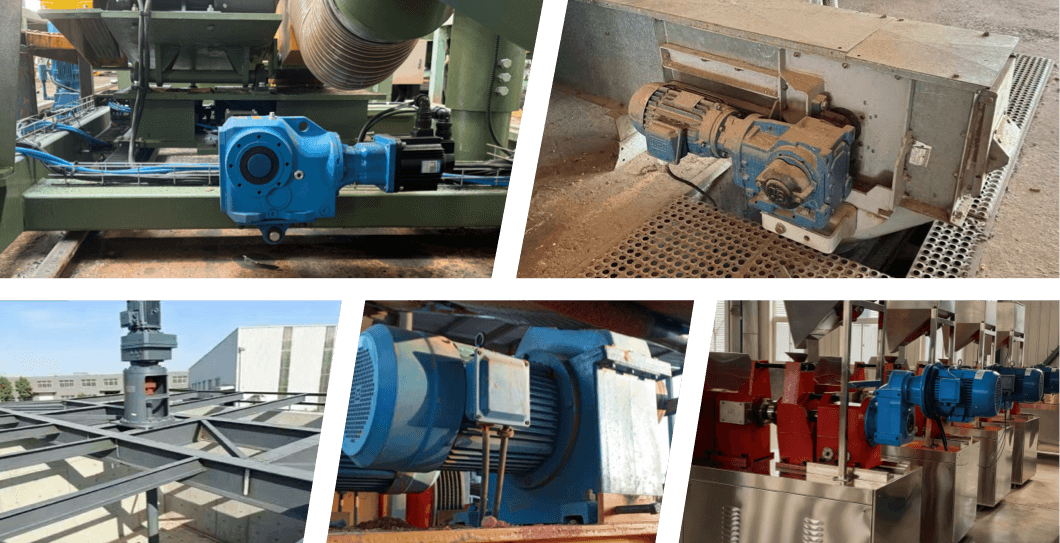

The F Series Parallel Shaft Helical Gearbox is specifically designed for industrial transmission systems requiring compact installation, high torque output, and high-efficiency parallel shaft power transmission. Featuring a space-saving parallel shaft structure and precision-ground helical gears, the gearbox delivers smooth operation, low noise, excellent load capacity, and outstanding transmission efficiency. Multiple mounting configurations, including foot-mounted and flange-mounted versions, together with solid or hollow output shaft options, provide exceptional flexibility for various industrial applications. The F Series parallel shaft helical gearbox is widely used in conveyors, lifting equipment, mixers, environmental protection machinery, warehousing systems, packaging machinery, and automated production lines. Output torque reaches up to 20,000 Nm, with motor power ranging from 0.12 kW to 200 kW, depending on model configuration.
| Specification | |
| Gear Type | Parallel Shaft Helical Gear |
| Mounting Type | Foot Mounted / Flange Mounted |
| Input Type | IEC Motor Input / Solid Shaft Input |
| Output Type | Solid Shaft / Hollow Shaft |
| Gear Material | High-Strength Alloy Steel |
| Gear Hardness | HRC58 - 62 |
| Transmission Efficiency | Up to 96% |
| Ratio Range | 3.8 - 281.7 |
| Output Torque | Up to 20,000 Nm |
| Motor Power | 0.12 - 200 kW |
| Housing Material | High-Strength Cast Iron |
| Lubrication | Oil Bath Lubrication |
| Protection Class | IP55 (Optional IP65) |
| Ambient Temperature | -20° C to +40° C |
| Model | Ratio Range | Output Torque (Nm) | Motor Power (kW) |
| F37 | 3.8 - 60 | 200 | 0.12 - 3 |
| F47 | 5 - 80 | 450 | 0.18 - 5.5 |
| F57 | 5 - 100 | 900 | 0.37 - 7.5 |
| F67 | 6 - 150 | 2,000 | 0.75 - 15 |
| F77 | 8 - 180 | 4,500 | 1.5 - 30 |
| F87 | 10 - 220 | 8,500 | 2.2 - 55 |
| F97 | 12 - 250 | 13,000 | 4 - 110 |
| F107 | 15 - 281.7 | 20,000 | 7.5 - 200 |
