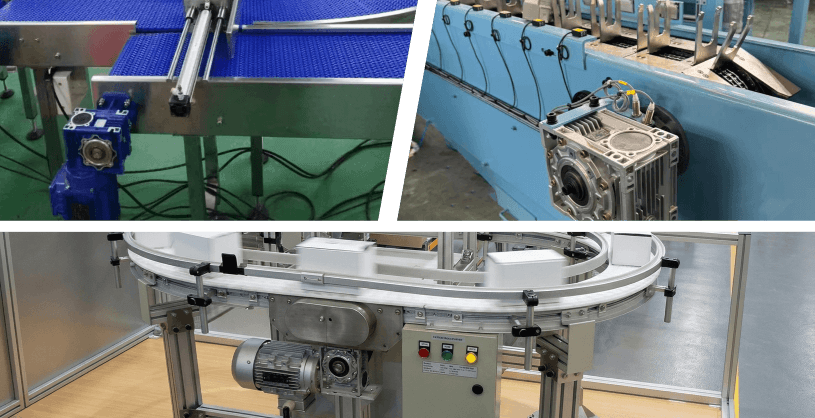

NRV-FA Series Shaft Input Worm Gearbox with Output Flange adopts a compact worm gear transmission structure combined with direct shaft input and output flange design. It provides flexible drive connection, convenient equipment integration, smooth operation and reliable torque transmission. The output flange structure simplifies the connection between gearbox and driven equipment, making it suitable for industrial applications requiring compact installation, high reduction ratios and stable low-speed operation. With a typical output torque range of 10–1,500 N·m and power range of 0.06–15 kW, it is widely used in conveyors, automation equipment, packaging machinery and material handling systems.
| Item | Specification |
| Product Series | NRV-FA Series |
| Gear Type | Worm Gear |
| Transmission Structure | Worm & Worm Wheel |
| Mounting Type | Output Flange Mounted |
| Input Type | Shaft Input |
| Output Type | Output Flange |
| Output Shaft Type | Flange Output / Hollow Shaft Optional |
| Housing Material | Aluminum Alloy / Cast Iron Optional |
| Worm Material | Hardened Alloy Steel |
| Worm Wheel Material | Bronze Alloy |
| Lubrication | Synthetic Oil Lubrication |
| Protection Grade | IP54 / IP55 Optional |
| Efficiency | Up to 90% |
| Ratio Range | 5–100 |
| Power Range | 0.06–15 kW |
| Output Torque | 10–1,500 N·m |
| Installation Direction | Multiple Installation Positions Available |
| Model | Frame Size | Ratio Range | Rated Power (kW) | Output Torque (N·m) |
| NRV-FA025 | 025 | 5–60 | 0.06–0.25 | 10 |
| NRV-FA030 | 030 | 5–80 | 0.09–0.55 | 25 |
| NRV-FA040 | 040 | 7.5–100 | 0.12–1.1 | 50 |
| NRV-FA050 | 050 | 7.5–100 | 0.18–2.2 | 100 |
| NRV-FA063 | 063 | 7.5–100 | 0.37–4 | 200 |
| NRV-FA075 | 075 | 7.5–100 | 0.55–7.5 | 400 |
| NRV-FA090 | 090 | 7.5–100 | 1.1–11 | 800 |
| NRV-FA110 | 110 | 7.5–100 | 2.2–15 | 1,500 |
Note: Customized output flange dimensions, input shaft configurations, reduction ratios and special application designs are available upon request.
