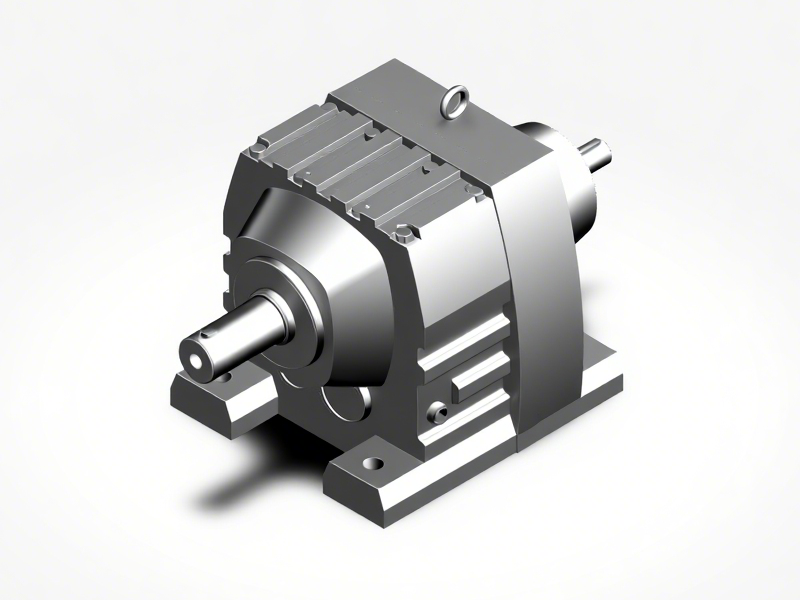

As a professional Industrial Gearbox Manufacturer, CYL provides high-efficiency Coaxial Helical Inline Gearbox solutions for industrial power transmission. Designed with a precision coaxial helical gearbox structure and solid shaft output, this helical gear reducer delivers compact installation, high torque density (50–5,000 Nm), low noise operation and reliable performance. The foot-mounted design ensures excellent stability, while optimized helical gears minimize vibration and improve transmission efficiency for various industrial machinery applications.
▍Product Features
As a professional coaxial helical gearbox Manufacturer, CYL supplies high-performance Coaxial Helical Inline Gearbox solutions designed for efficient industrial power transmission. Featuring a precision coaxial helical gearbox structure with solid shaft output, this helical gear reducer provides space-saving installation, high torque density (50–5,000 Nm), low noise operation and reliable performance under demanding working conditions.
The foot-mounted design ensures excellent mechanical stability, while heat-treated helical gears and premium materials enhance durability, reduce vibration and extend service life. Suitable for conveyors, pumps, mixers, manufacturing equipment and other industrial machinery, this coaxial helical gear reducer offers easy motor integration, reversible operation, low maintenance requirements and industry-standard compatibility for various applications.
▍Parameter

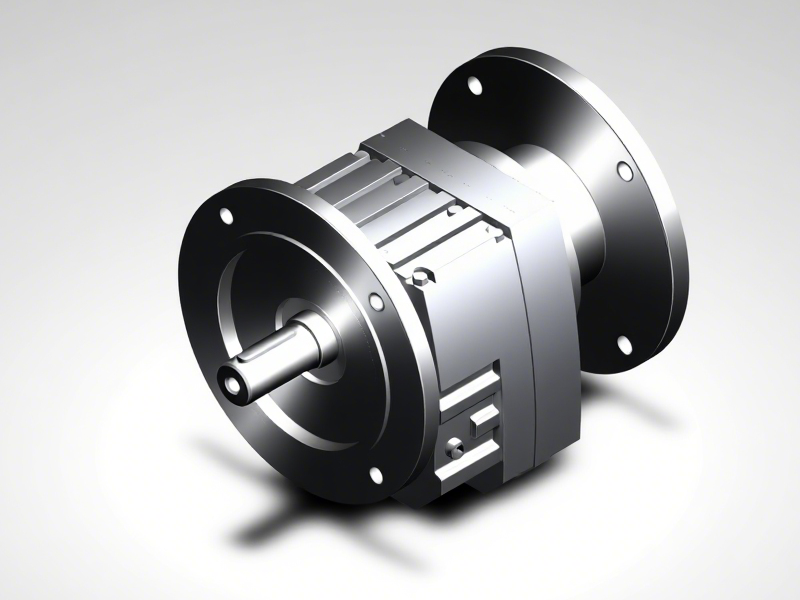

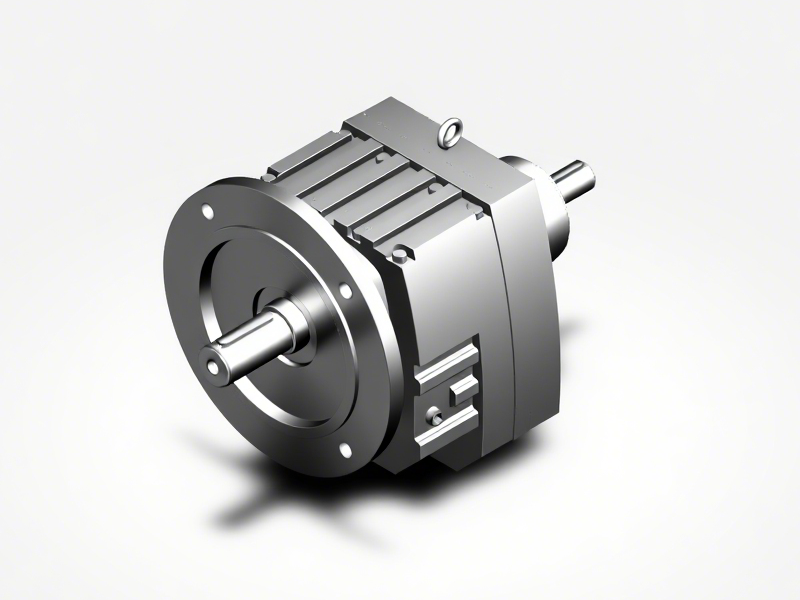

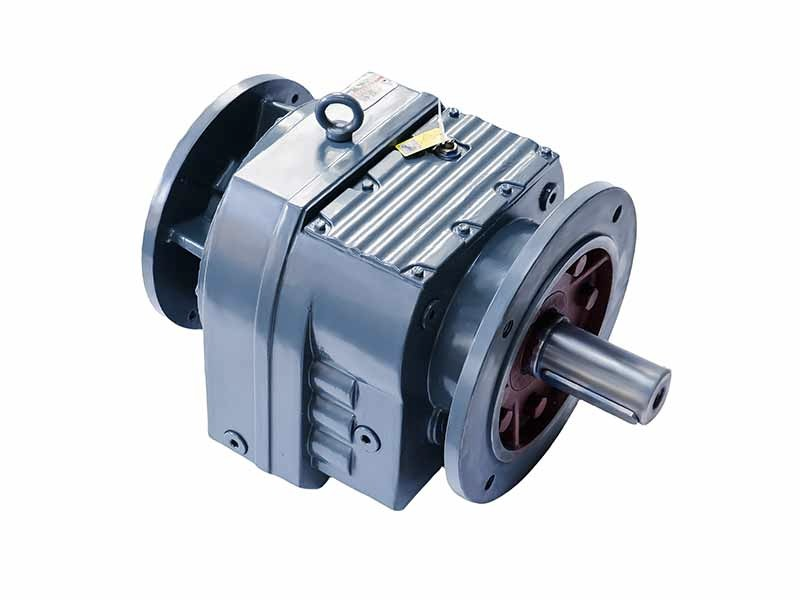

| Product Name | RF Series Flange-mounted helical gearunits with solid shaft |
| Gear material | 20CrMnTi alloy steel |
| Color | Blue Silver Red Customerized |
| Case Material | Cast iron HT200 |
| Gear Processing | Grinding finish by HOFLER Grinding Machines |
| Noise Test | Below 65dB |
| Brand of bearings | C&U bearing, ZWZ,LYC, HRB, NSK ,etc |
| Brand of oil seal | NAK or other brand |
| Temp. rise (MAX) | 40ºC |
| Temp. rise (Oil)(MAX | 50ºC |
| Vibration | ≤20µm |
| Housing hardness | HBS190-240 |
| Surface hardness of gears | HRC58°~62 ° |
| Gear core hardness | HRC33~40 |
| Machining precision of gears | 5 Grade |
| Lubricating oil | GB L-CKC220-460, Shell Omala220-460 |
| Heat treatment | Carburizing, Quenching etc |
| Efficiency | 95%~96% (depends on the transmission stage) |
| Backlash | ≤20Arcmin |

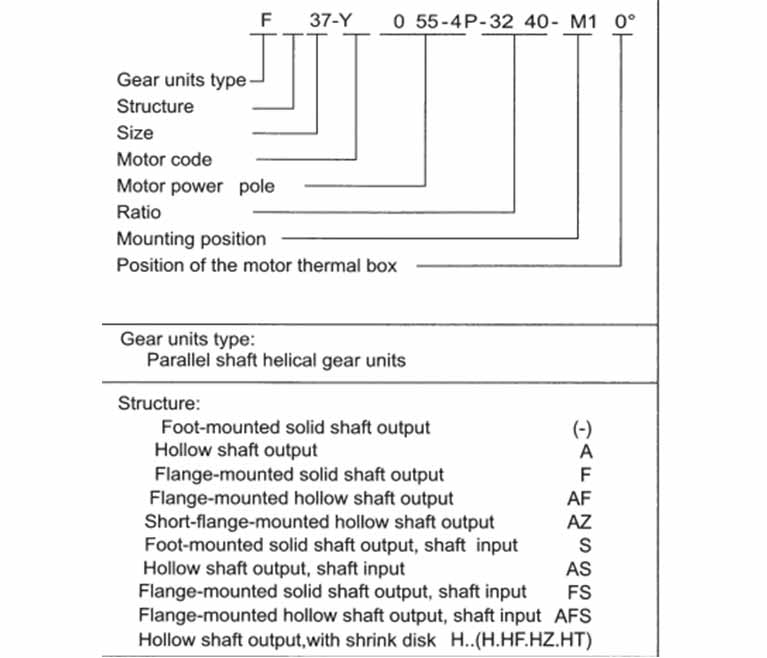

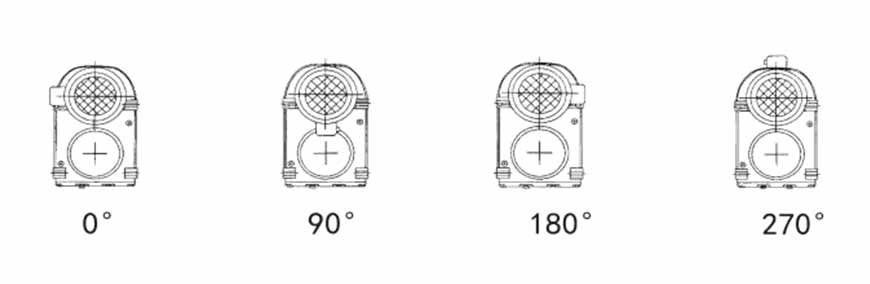

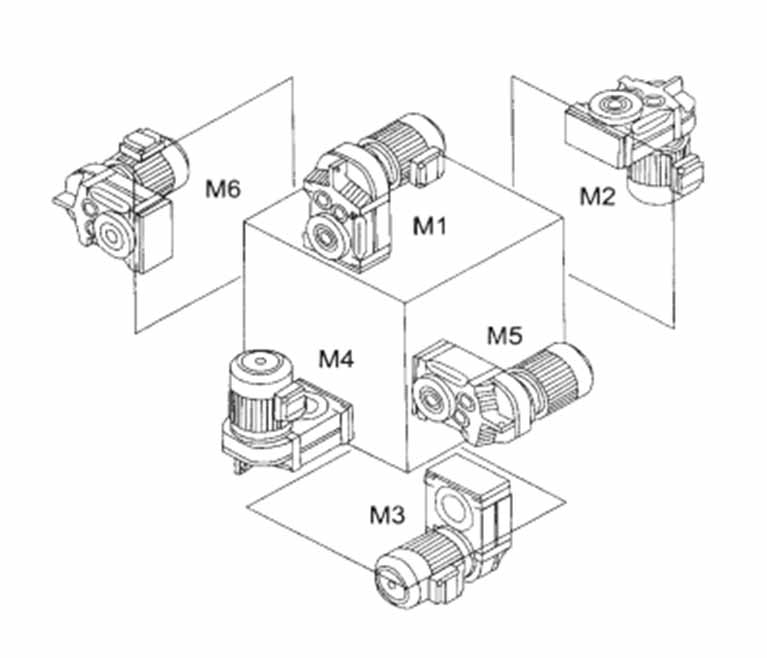

▍Drawing
