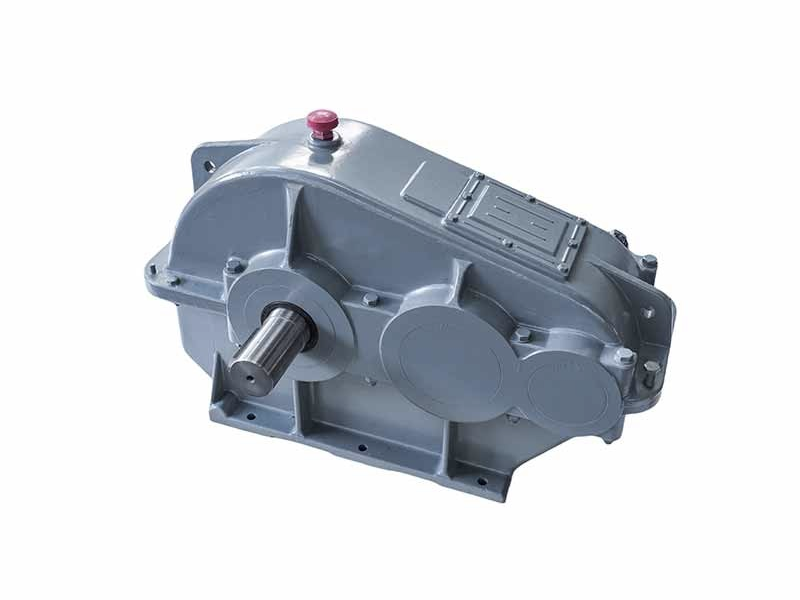

ZQ Series Gear Reducer

Other

Request your customized solution

▍Product Features

ZQ speed reducer series, including ZQ (involute cylindrical gear reducer), ZQH (single - arc cylindrical gear reducer), and ZQSH (double - arc cylindrical gear reducer), are well - suited for industries such as construction materials, lifting, transportation, and metallurgy. ZQ adopts involute cylindrical gear design for stable transmission. ZQH and ZQSH utilize arc gear structures, enabling efficient power transfer with strong load - bearing capacity. These reducers feature a compact structure, facilitating easy installation. Crafted from high - quality materials, they ensure durability and reliable long - term operation, effectively meeting diverse industrial demands and providing stable, efficient speed - reduction solutions for various mechanical systems.

▍Parameter

nominal input power
nominal input power
nominal ratio			10			16			20			25
nominal speed r/min		input n1	1500	1000	750	1500	1000	750	1500	1000	750	1500	1000	750
		input n1	1500	1000	750	1500	1000	750	1500	1000	750	1500	1000	750
		output n2	150	100	75	94	62	47	75	50	38	60	40	30
		output n2	150	100	75	94	62	47	75	50	38	60	40	30
type	ZJY75	nominal input power P1/kw	2.8	1.9	1.4	2.5	1.7	1.3	1.9	1.3	1	1.6	1.1	0.8
	ZJY90		4.6	3.1	2.3	4.1	2.7	2.1	3.1	2.1	1.6	2.7	1.8	1.4
	ZJY106		7.6	5.1	3.8	6.8	4.5	3.4	5.2	3.5	2.6	4.5	3	2.3
	ZJY125		12.6	8.4	6.3	11.4	7.6	5.7	8.6	5.7	4.3	7.2	4.8	3.6
	ZJY150		21.5	14.3	10.8	19.3	12.9	9.7	14.2	9.5	7.1	12	8	6
	ZJY180		36	24	18	32.1	21.4	16.1	24	16	12	20.4	13.6	10.2
	ZJY212		60.3	40.2	30.2	53.8	35.9	26.9	40.5	27	20.3	34	22.7	17
	ZJY250		-	67.3	50.5	90.2	60.1	45.1	67.5	45	33.8	56.8	37.9	28.4
	ZJY300		-	-	-	-	-	-	-	74.7	56	95	63.3	47.5
