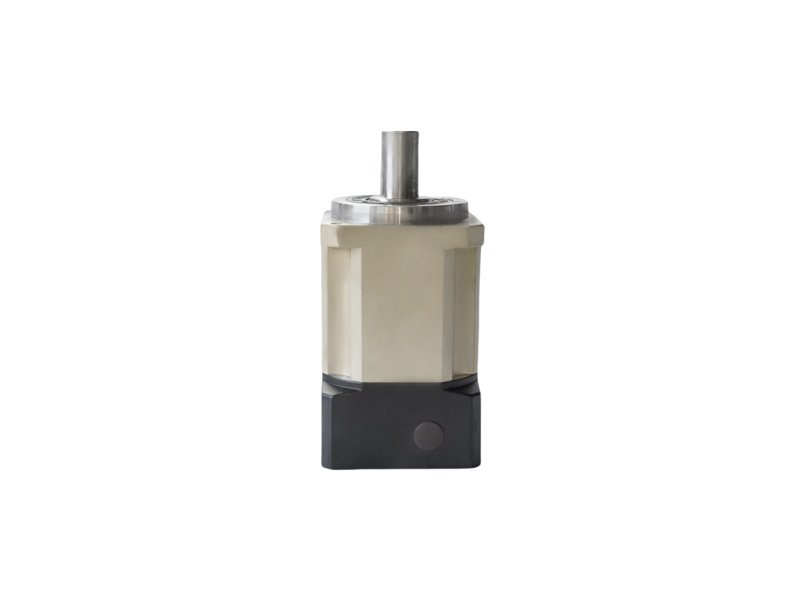

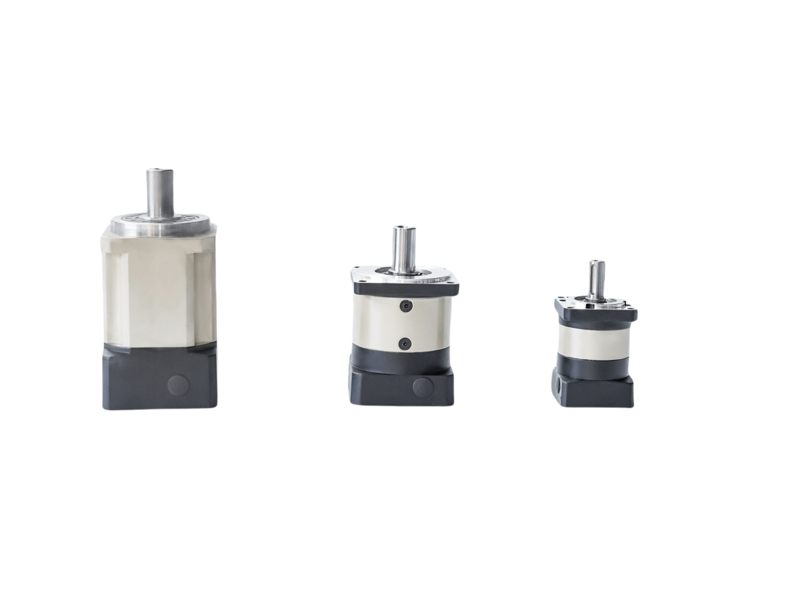

High Precision Planetary Gearbox for Servo Motor and Automation Equipment

A full range of Precision Planetary Gear Reducers is available. Please contact us for detailed specifications, dimensional drawings, technical data, and customization options.


Model: PLX/PLF/PLH

Product Introduction

The Precision Planetary Gear Reducer is specifically designed for high-precision motion control systems requiring exceptional positioning accuracy, high torque density, compact dimensions, and outstanding transmission efficiency. Utilizing a precision planetary gear mechanism combined with high-strength alloy steel gears and advanced machining technology, the reducer delivers excellent torsional rigidity, low backlash, smooth transmission, and long service life. Compatible with servo motors and stepper motors from major global manufacturers, it is widely used in CNC machine tools, industrial robots, automation equipment, laser machinery, semiconductor manufacturing, packaging systems, medical devices, and intelligent production lines. Output torque reaches up to 2,000 Nm, with motor power ranging from 0.05 kW to 30 kW, depending on model configuration.

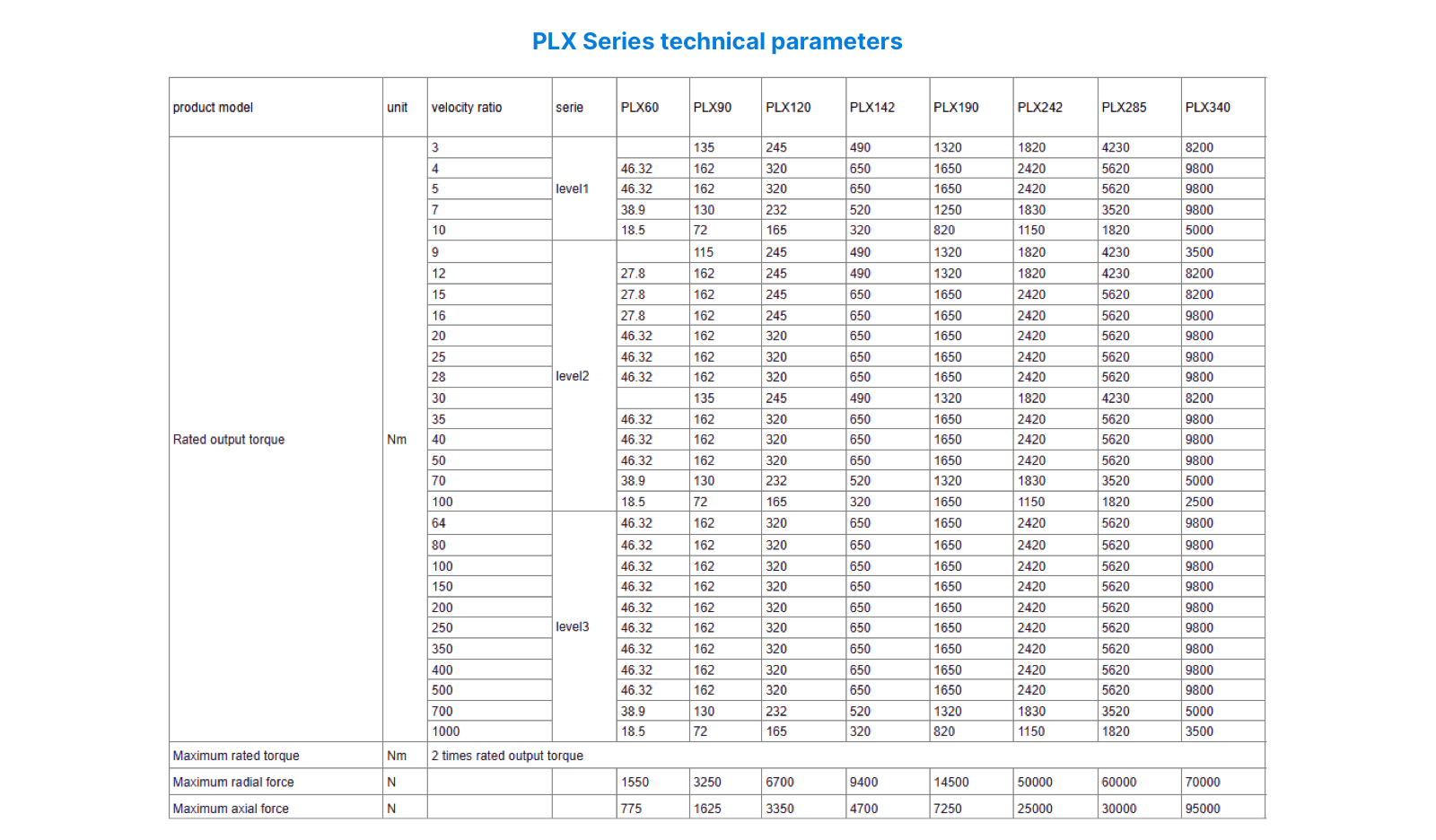

Technical Specifications

ItemSpecification
Gear TypePlanetary
Output Shaft TypeSolid shaft
Mounting OrientationFoot mounted
Maximum Input Horsepower3kw
Rated output torque18.5Nm~13800Nm
Primary reduction ratio3,4,5,7,10
Secondary reduction ratio9,12,15,16,20,25,28,30,35,40,50,70,100
Three-step reduction ratio9,12,15,16,20,25,28,30,35,40,50,70,100
Return clearance5arcminute~20arcminute


编组 22 (1).png

Please Contact Us!
