How do you choose a trustworthy Chinese Helical Gearbox Manufacturer for heavy-duty factory uses? Buying power transmission drives for international OEMs means carefully checking companies using real technical standards. You need to look past basic prices and check key technical details before asking for a price quote.

You should ask for ISO 9001:2015 certification and checked DIN 6 gear grinding precision to guarantee good performance. Always double-check where materials come from, including case-hardened alloy specifications, and make sure the factory tests the parts under heavy loads. Working directly with factory partners cuts out extra seller fees. This choice gives you direct factory prices, custom design help, and dependable quality checks for your drive systems.

Key Takeaways

• Pick direct factories to skip extra fees and get true factory prices.

• Check DIN 6 gear accuracy to make sure you get over 95% power output and quiet performance.

• Make sure they use 20CrMnTi alloy steel so gears stay strong under heavy weight.

• Ask for complete factory tests for weight, sound, and oil leaks before shipping.

Evaluating Helical Gearbox Manufacturer Precision and Standards

You must check factory building skills before choosing a Chinese supply partner for heavy machinery. Drive parts need exact sizing to stop early breakdowns in non-stop factory equipment. You need to review the cutting rules and heat shaping methods of every possible supplier.

Machining Accuracy and DIN 6 Standards

Inside gear sizing directly controls total energy output and working noise amounts in factory drive systems. Good suppliers use imported CNC gear grinders to reach tight accuracy. Changzhou Changyulong Reducer Co., Ltd. acts as a top Chinese Helical Gearbox Manufacturer by using modern CNC grinding tools to reach proven DIN 6 gear accuracy.

Tight cutting accuracy lowers surface rubbing between spinning gear teeth during strong power movement. Less tooth rubbing directly increases total drive work efficiency. Changyulong gear units reach over 95% working efficiency because of this careful tooth surface management. Great gear accuracy stops energy loss, cuts unwanted machine shaking, and removes extra heat buildup during high-power tasks.

High gear tooth precision under DIN 6 standards reduces internal friction, lowers vibration levels, and guarantees over 95% power efficiency.

Material Durability and 20CrMnTi Alloy Heat Treatment

Base metal choices control the long-term weight limits of modern speed reducers. Good factories skip cheap carbon steels for drive parts. Top makers select 20CrMnTi alloy steel for all high-torque main gears and support shafts.

Carburizing heat baking changes the outer layer of this strong alloy steel. Special heat treating hardens the metal skin to a tough level of 58-62 HRC. This strong surface hardness offers great defense against heavy rubbing. The inner center stays tough enough to handle sudden machine bumps during daily heavy work loads.

Raw Alloy Selection (20CrMnTi) Carburizing Heat Treatment Surface Hardness (58-62 HRC)

1. Check new raw metals using chemical tests to verify alloy contents before gear cutting starts.

2. Shape gear teeth using fast CNC cutting machines to build clear tooth shapes.

3. Use carburizing heat baking in sealed ovens to reach a 58-62 HRC outer hardness.

4. Smooth tooth sides using CNC grinding tools to match exact DIN 6 fitting rules.

5. Finish final gear building and do full machine checks inside managed factory rooms.

Complete factory control plays a huge role in keeping product quality steady across all building steps. Suppliers relying on outside shops often fight with uneven gear sizes and messy delivery plans. You get total quality safety when you pick a fully complete Helical Gearbox Manufacturer like Changyulong. Changyulong manages every step inside, from raw metal checks to final active building. Inside work safety keeps hidden material flaws from touching your build line.

In-house heat treatment safety protects drive systems from early gear tooth breakdown. Outside heat treating often causes uneven hard layers across large groups. Complete factory making guarantees steady metal hardening across every gear tooth. Exact temperature control promises long-lasting power movement for tough jobs in mining movers, steel making tools, and smart supply systems.

Step-by-Step Vetting of a Chinese Helical Gearbox Manufacturer

You need a clear plan to pick a dependable partner in China. Buying heavy factory drive systems requires real proof of true plant skills. You can guard your buying money and get great gearboxes by following exact checking steps. Smart checking removes work dangers and promises long drive life.

Verifying Direct Manufacturers Versus Trading Companies

Many global buyers accidentally buy from middle trading firms instead of real factories. These middle trading companies raise gear costs and slow down clear talking channels. They also cannot control gear cutting sizes, metal heat baking, or final run testing. You must check real factory ownership before signing buying papers or sending technical gear drawings.

You can easily tell real factories apart from middle sellers by checking key documents and looking at working equipment.

• Business License Scope: Check the main Chinese business paper. Real factories clearly list machine making, gear cutting, and factory tool building in their legal business work limits.

• Interactive Video Inspections: Ask for live video tours showing running CNC gear grinders, hot heat treating ovens, and active test tables during real work time.

• Custom Engineering Support: Ask deep gear change questions directly to plant engineers. Real makers send special 3D CAD design models quickly inside two short days.

• Export Record Verification: Check past shipping trade papers. Real building factories ship factory gearboxes under their own legal company name instead of outside trading groups.

Working right with a proven Helical Gearbox Manufacturer removes extra middle fees. Direct plant teamwork promises true factory prices, fast technical help, and full quality proof through all making steps.

Factory Audits and ISO 9001:2015 Compliance

A real ISO 9001:2015 quality paper proves that a plant uses set work steps. However, you should never trust unverified paper notes alone. Fake or old quality papers often show up in global buying markets. You must check paper numbers against official web lists like the Certification and Accreditation Administration of the People's Republic of China.

Authentic ISO 9001:2015 certification guarantees that a supplier maintains systematic quality control protocols across raw material receiving, CNC machining, heat treatment, and final dispatch.

Deep factory checks prove real shop floor work beyond basic paper notes. You should check main inside quality control steps during your plant visit:

• Material Traceability Protocols: Check incoming raw metal papers for 20CrMnTi alloy steel parts. Match heat lot numbers across oven records to prove clean steel quality.

• Precision Inspection Equipment: Check for special gear testing tools, like CNC gear checking units, 3D measuring tools, and outer hardness checkers.

• Assembly Testing Standards: Make sure the building plant puts every finished gear drive through full pre-shipment weight tests, sound checks, and oil leak checks.

Strict factory checks confirm true gear power quality. Direct plant visits protect your machinery from sudden work stops in hard factory jobs.

Sourcing Modular R/S/K/F Series Gear Reducers for Industrial Needs

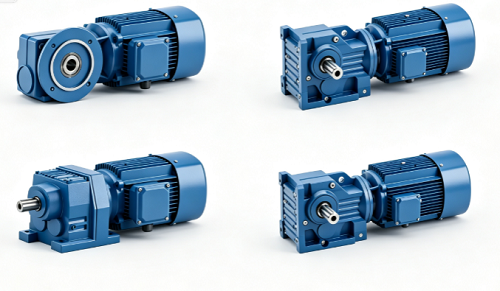

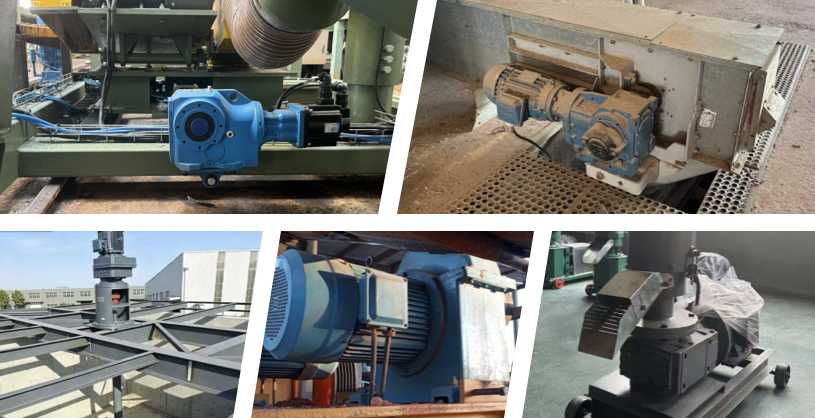

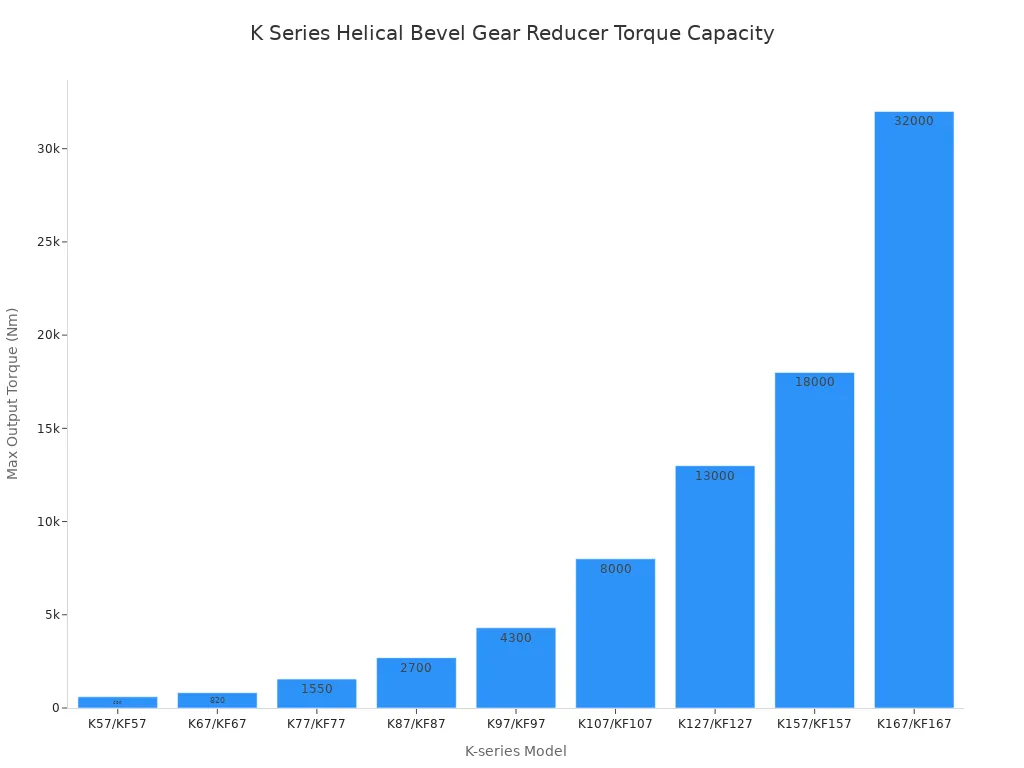

Changzhou Changyulong Reducer Co., Ltd. makes strong Helical Gearboxes & Gear Motors (R/S/K/F Series) for hard factory work. These flexible units easily connect to many types of plant equipment. The mighty K Series provides heavy turning power all the way up to 50,000 Nm.

Buyers can pick various shaft setups and power entry choices to match tight machinery plans.

Custom Flanges, Ratios, and Shaft Matching

You can ask for special gear builds to match your exact tool bases. Changyulong provides exact size matching to swap out old machinery quickly. Plant experts send digital 3D drawings in two days for global system builders.

You can order tough shaft metals like SS304 or SS316 stainless steel for dirty work areas. Custom metal parts generally add extra wait times to your total job schedule. Normal units with standard connectors give a quicker fix when you need fast field swaps. Motor setup options include these common global frame sizes:

• IEC flanges: 63, 71, 80, 90, 100, 112, 132

• NEMA flanges: 56C, 140TC, 180TC

• Japanese metric frames: 60mm, 80mm, 130mm

Quality Assurance and 100% Load and Leak Testing

Careful plant reviews keep machines running smoothly on busy work floors. Every speed reducer must complete full working checks before shipping out.

Every R/S/K/F series helical gear reducer receives 100% load, noise, and oil-leak testing before shipment from its China facility.

These last checks ensure quiet gear movement under heavy weight forces. The leak checks trap fluid safely inside the outer gear case. You get a fully proven, trustworthy drive system ready for quick setup.

Managing Production Contracts, Freight, and Warranties

Negotiating Clear Technical Specifications and Incoterms

You must list every technical detail clearly in your final production deal with a Helical Gearbox Manufacturer. Set exact gear ratios, output torque limits, shaft sizes, case materials, and mounting spots before placing an order. You should also pick clear Incoterms to avoid legal disputes and sudden shipping costs. Choosing terms like FOB or CIF clearly splits shipping fees, export rules, and transit risks between you and the plant.

You should link your payment dates directly to proven building stages. Ask for clear warranty rules that pay for new parts and labor if anything breaks early. A solid contract protects your business money, sets clear defect rules, and promises quick help during setup.

Establishing Third-Party Inspection Protocols

You can hire outside quality inspectors to check your gear drives before they leave the factory. These outside groups visit the plant to make sure every unit meets global quality rules. The table below shows the key checking steps your test team must review on the shop floor:

Outside inspection groups give fair reports about gear quality and build standards. Asking for raw material tracking notes and heat records stops early drive breakdowns during hard work. You protect your machine investments, keep work on schedule, and protect smooth factory output by checking full rules before shipping.

Finding a dependable Helical Gearbox Manufacturer in China requires strict technical checks. You must verify ISO 9001:2015 certificates, DIN 6 gear accuracy, and 100% load testing protocols. Choosing a direct plant eliminates unnecessary trading margins and guarantees full material traceability. Changzhou Changyulong Reducer Co., Ltd. serves as an ideal factory-direct partner, delivering high-torque drive solutions for demanding applications in mining, steel, logistics, and packaging.

Review this quick checklist before sending your Request for Quotation (RFQ):

• Confirm 20CrMnTi alloy steel usage and carburizing heat treatment standards.

• Request 3D CAD drawings and dimensional matching verification.

• Validate factory-direct ownership through live video audits.

FAQ

Can you request custom shaft sizes and output flanges for existing machinery?

Yes. You can ask for exact size matching to swap out old machinery easily. Plants offer custom output flanges, including NEMA, IEC, and Servo options. You can also pick special shaft metals, like SS304 or SS316 stainless steel, to meet your exact equipment needs.

What materials and heat treatment processes ensure gear durability?

Trustworthy plants build gears using 20CrMnTi alloy steel. Carburizing heat baking hardens the outer gear layer to 58-62 HRC. This process builds a strong outer skin that stops rubbing while leaving the inside center flexible to take sudden heavy hits.

How do factories verify product quality before shipping?

Factories run complete quality checks on every single gear drive before it leaves. Workers perform full weight tests, sound checks, and fluid leak tests. These careful checks ensure steady machine work and stop sudden breakdown stops on your plant floor.

What mechanical efficiency and gear accuracy levels can you expect?

You can count on over 95% working efficiency from exact drive systems. Modern CNC gear grinders reach proven DIN 6 accuracy rules. This tight gear accuracy lowers inside rubbing, cuts down on working noise, and stops unwanted heat buildup during heavy power tasks.
