How to Choose the Right Helical Gearbox for Your Industrial Machinery?
Choosing the right transmission solution is essential for improving the efficiency, reliability, and service life of industrial machinery. A helical gearbox is one of the most widely used power transmission solutions because of its high efficiency, smooth operation, low noise, and excellent load capacity.
However, selecting the correct gearbox requires careful consideration of factors such as motor power, torque requirements, speed ratio, installation space, and operating conditions. Working with an experienced helical gearbox supplier can help businesses identify the most suitable gearbox model and avoid costly equipment failures.
As a professional industrial gearbox manufacturer, CYL provides customized R/S/K/F series helical gearbox solutions designed for conveyors, automation equipment, packaging machinery, material handling systems, and other industrial applications.
Key Takeaways
A helical gearbox provides efficient and reliable speed reduction for industrial equipment.
Choosing the correct gearbox requires evaluating torque, speed ratio, motor power, and application environment.
Different gearbox structures, including inline, parallel shaft, worm-helical, and bevel-helical designs, fit different machinery requirements.
A reliable helical gearbox supplier can provide technical support, customization, and long-term service.
Selecting products from an experienced industrial gearbox manufacturer ensures better quality control and transmission performance.
What Is a Helical Gearbox?
A helical gearbox is a mechanical transmission device that uses helical gears with angled teeth to transfer power between the input and output shafts. Compared with traditional spur gear systems, helical gears provide gradual tooth engagement, resulting in smoother operation, reduced vibration, and higher load-bearing capacity.
Due to these advantages, helical gearboxes are commonly used in industries requiring continuous operation and high reliability, including:
Conveyor systems
Food processing machinery
Packaging equipment
Mining equipment
Chemical processing machinery
Automated production lines
Material handling systems
A professional industrial gearbox manufacturer usually offers different helical gearbox configurations to meet various installation and performance requirements.
Why Choosing the Right Helical Gearbox Matters
Selecting an unsuitable gearbox can lead to problems such as excessive noise, overheating, reduced efficiency, and premature component failure. The correct helical gearbox should match the operating conditions of your machinery.
The right gearbox can provide:
1. Higher Transmission Efficiency
Helical gear designs reduce energy loss during power transmission. This allows industrial machines to operate with lower energy consumption and improved productivity.
2. Stable Torque Output
Many industrial applications require consistent torque performance. A properly selected gearbox ensures stable power delivery even under heavy loads.
3. Longer Equipment Service Life
A high-quality gearbox reduces mechanical stress on motors and other components, helping extend the overall lifespan of industrial machinery.
4. Lower Maintenance Costs
Reliable gearboxes require fewer repairs and replacements, reducing downtime and improving production efficiency.
6 Key Factors to Consider When Choosing a Helical Gearbox
1. Determine Required Torque and Power
Torque is one of the most important factors when selecting a gearbox. Different machines require different output torque levels depending on their workload.
Before choosing a helical gearbox, consider:
Motor power rating
Required output torque
Starting load
Continuous operating conditions
Safety factor requirements
A professional helical gearbox supplier can calculate the correct torque requirements and recommend the appropriate gearbox model.
2. Select the Correct Gear Ratio
The gear ratio determines how much the gearbox reduces motor speed while increasing output torque.
For example:
High-speed applications may require lower reduction ratios.
Heavy-duty machinery usually requires higher reduction ratios for greater torque output.
Choosing the correct ratio helps maintain optimal machine performance and prevents unnecessary energy consumption.
3. Consider Installation Space and Mounting Design
Industrial machinery often has limited installation space. Different helical gearbox structures are designed for different layouts.
Common types include:
R Series Inline Helical Gearbox
The R series features a compact inline design and is suitable for applications requiring direct shaft alignment.
Typical applications: Conveyors, Mixers, Industrial automation equipment
F Series Parallel Shaft Helical Gearbox
The F series provides a space-saving parallel shaft structure and is commonly used in conveyor systems and material handling equipment.
K Series Bevel Helical Gearbox
The K series combines bevel gears and helical gears to provide high torque transmission with a right-angle output design.

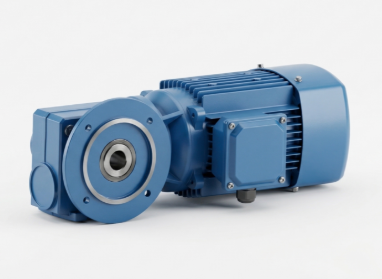

S Series Worm Helical Gearbox
The S series integrates helical and worm gear technology for compact installation and smooth operation.
A reliable industrial gearbox manufacturer can provide different configurations according to machine design requirements.
4. Evaluate Operating Environment
The working environment directly affects gearbox performance.
Important factors include:
Temperature conditions
Dust and moisture exposure
Continuous or intermittent operation
Chemical exposure
Heavy shock loads
For harsh industrial environments, selecting a gearbox with durable housing, high-quality bearings, and optimized lubrication is essential.
An experienced helical gearbox supplier can recommend suitable protection levels and materials based on your application.
5. Check Gearbox Efficiency and Noise Level
Efficiency is a critical factor for industrial equipment operating continuously.
A high-quality helical gearbox offers:
High transmission efficiency
Smooth gear engagement
Reduced vibration
Lower operating noise
These advantages make helical gearboxes ideal for factories where stable and quiet operation is required.
6. Choose a Reliable Helical Gearbox Supplier
The supplier you choose can significantly influence product quality and long-term performance.
A professional helical gearbox supplier should provide:
Technical Support
The supplier should help customers select suitable gearbox models based on application requirements.
Customization Capability
Industrial projects often require customized solutions, including:
Special mounting dimensions
Customized gear ratios
Different shaft designs
OEM requirements
Quality Manufacturing
Choosing an experienced industrial gearbox manufacturer ensures strict production control, reliable materials, and consistent gearbox performance.
Applications of Helical Gearboxes in Industrial Machinery
Conveyor Systems
Helical gearboxes provide stable torque output for conveyor belts used in logistics, manufacturing, and warehouse automation.
Packaging Machinery
Packaging equipment requires precise speed control and continuous operation. Helical gearboxes help improve production efficiency.
Food Processing Equipment
Low noise and reliable operation make helical gearboxes suitable for mixers, processing machines, and production lines.
Mining and Heavy Industry
Heavy-duty applications require high torque capacity and durable transmission systems.
Automated Manufacturing Systems
Modern factories rely on efficient gear transmission solutions for robotic systems and automated production equipment.
Why Choose CYL as Your Helical Gearbox Supplier?
CYL is a professional industrial gearbox manufacturer specializing in R/S/K/F series transmission solutions for global industrial applications.
Advantages include:
Wide Product Range: CYL provides various helical gearbox models, including inline, parallel shaft, worm-helical, and bevel-helical designs.
Customized Solutions: Different industries have different transmission requirements. CYL supports OEM customization according to customer specifications.
Reliable Performance: High-quality materials, precision machining, and strict quality control ensure stable gearbox operation and long service life.
Factory Direct Supply: Working directly with a manufacturer helps customers receive competitive pricing, technical assistance, and efficient delivery.
Frequently Asked Questions About Helical Gearboxes
1. What is the difference between a helical gearbox and a standard gearbox?
A helical gearbox uses angled gear teeth that provide smoother engagement, higher efficiency, and lower noise compared with traditional spur gear systems.
2. How do I select the right helical gearbox for my machine?
You should consider motor power, output torque, gear ratio, installation space, operating environment, and application requirements. Consulting a professional helical gearbox supplier can help ensure the correct selection.
3. Are helical gearboxes suitable for heavy-duty applications?
Yes. Many industrial helical gearboxes are designed for heavy-duty applications requiring high torque, continuous operation, and reliable performance.
4. Can a helical gearbox be customized?
Yes. A professional industrial gearbox manufacturer can customize gearbox specifications, mounting structures, output designs, and transmission ratios based on customer needs.
5. Why choose CYL instead of other gearbox suppliers?
CYL provides reliable helical gearbox solutions with customized services, professional engineering support, and manufacturing expertise for various industrial applications.
Conclusion
Selecting the right helical gearbox is essential for achieving efficient, reliable, and long-lasting industrial machinery performance. By evaluating torque requirements, speed ratio, installation conditions, and operating environments, companies can find the best transmission solution.
Partnering with an experienced helical gearbox supplier and trusted industrial gearbox manufacturer ensures access to high-quality products, technical support, and customized gearbox solutions. For industrial applications requiring stable power transmission, CYL R/S/K/F series helical gearboxes provide an effective and dependable choice.
