You need dependable power in tiny places. A worm gearbox easily solves this big problem. This tool turns at a right angle. It uses a threaded shaft. The shaft connects with a gear wheel.

Engineers choose this special tool for quick speed control. It gives strong turning power in a small box. Good energy use prevents waste during work days. You also get top safety features. The special design locks itself in place. It stops backward motion under heavy weights. Plus, each worm gear gearbox runs very quietly.

Key Takeaways

• Worm gearboxes turn power. They turn at right angles. This saves valuable space. It helps small factory machines.

• The safe lock keeps heavy items from sliding down. It works during power outages. Extra brakes are not needed.

• Engineers use these quiet gearboxes in many places. They put them in elevators and conveyor belts. You also find them in security gates. They work in heavy industrial mixers, too.

• Top synthetic oils keep gear parts cool inside. They also boost energy efficiency during daily use.

• Picking the correct gear ratio and power level keeps your machine running well for years.

Worm Gearbox Applications across Key Industries

You find these gearboxes everywhere today. Many factories need these right-angle drives. They handle heavy physical loads daily. Factory managers love these smart machines. They save lots of space. They keep daily work moving quickly.

Elevators, Hoists, and Material Lifts

Lifting systems must be very safe. The worm gear locks itself fast. It stops scary drops under load. Power cuts might happen anytime today. The gear holds heavy weights safely. It never slips down the shaft. Motorized lifts carry big heavy loads. Manual hand systems move smaller items. Engineers pick this design for tight spaces.

The SWL Series screw jack gearbox from Changzhou Changyulong Reducer Co., Ltd. gives stable vertical motion for your tough lifting setups.

Conveyor Belts and Material Handling

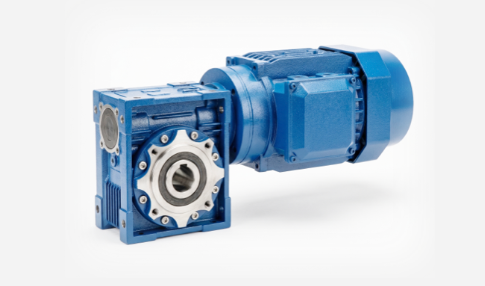

Moving materials needs smooth slow speed. Constant motion moves items very safely. No jerky stops damage your products. Put a small gearbox on belts. It fits inside small sorting spaces. Managers use them in busy hours. The NMRV and WP Series models from Changzhou Changyulong Reducer Co., Ltd. fit small tools while giving steady power.

Industry market data shows big global sales:

Automated Security Gates and Barriers

Security gates need reliable daily power. A small gearbox opens big doors. It works quietly all day long. The closed box saves extra space. It fits inside tiny narrow posts. Strong gear teeth fight bad intruders. They stop people from pushing doors. You get top lock safety always.

Industrial Mixers and Processing Units

Mixing thick liquids takes slow force. A strong gearbox turns heavy drums. It works inside large factory tanks. Less friction saves lots of energy. Motor engines will not stop running. Precise parts help save power daily. A good gearbox keeps work moving. High power efficiency cuts electric bills. This tough machine stays very strong. High turning force moves thick sludge. It mixes heavy fluids with ease.

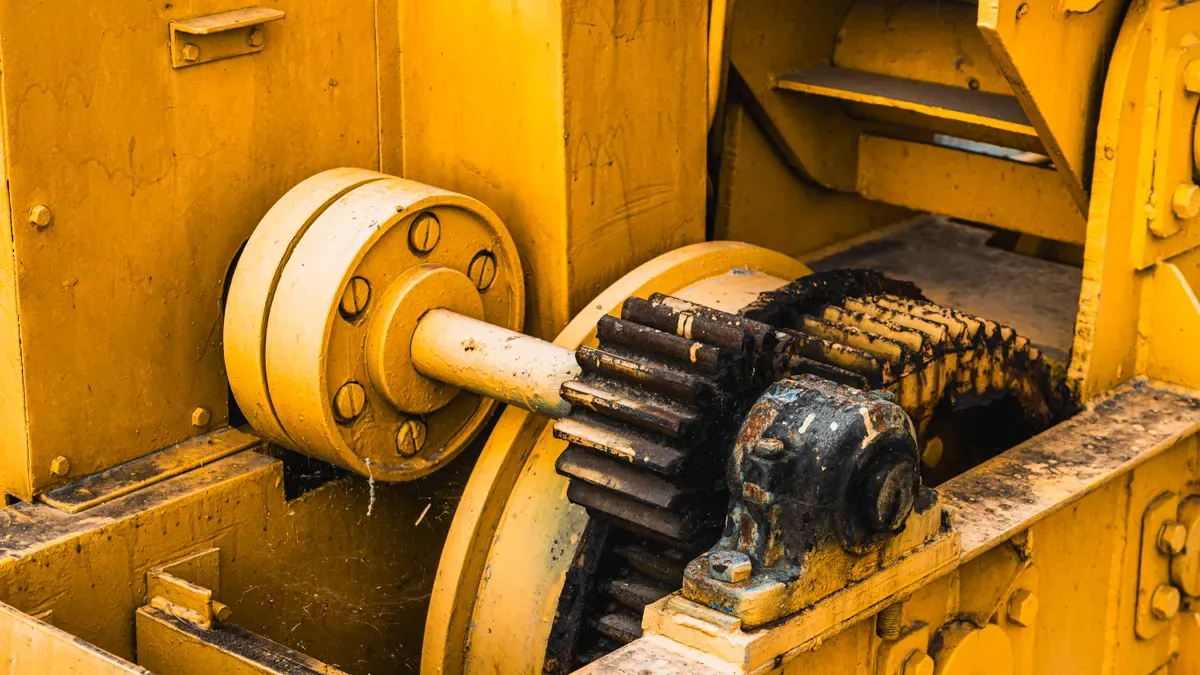

How a Worm Gear Works: Core Operating Principles

Right-Angle Power Transmission

You change power direction easily. Use a spiral worm screw. It turns a meshed worm wheel. This creates a 90-degree turn. This small right-angle design runs smoothly. You need no extra parts. It saves space in small boxes. You can add it to factories. It keeps heavy machines moving daily.

Key benefits of this spatial layout include:

• 90-Degree Power Redirection: Stops using bulky chains or sprockets.

• Hollow-Bore Hanging Design: Mounts right on powered shafts easily.

• Layout Flexibility: Saves big space inside tight frames.

• Compact Unit Footprint: Fits tiny spots while giving high torque.

This right-angle gearbox operates smoothly across demanding industrial environments.

High Single-Stage Speed Reduction

You drop speed very fast. Ratios range from 10:1 to 100:1. It uses just one stage. This design cuts complex gear sets. Regular units hit speed limits. This happens near 60:1 or 70:1. Math shows final motor output: Output Speed (RPM) = Input Speed (RPM) ÷ Gear Ratio. Also: Output Torque = Input Torque × Gear Ratio × Gearbox Efficiency. An input speed of 1,800 RPM drops. A 20:1 ratio makes it 90 RPM. Supply 50 lb-ft input motor torque. Get 98% efficiency for 980 lb-ft.

High gear ratios (typically 50:1 and above) prioritize torque multiplication over speed. This allows small motor input setups to generate massive high torque required for moving heavy loads.

Mechanical efficiency varies across specific gear configurations:

Overall power output stays high. It ranges from 50% to 90%. Compact worm gearboxes cut high speeds. They work well with small motors. Choosing good systems helps power output.

Non-Reversing Self-Locking Mechanism

Sliding parts move the input shaft. The shaft turns the wheel fast. But heavy loads cannot force reverse. Gears lock when lead angle λ stays small. It must drop below friction angle φ. The formula shows λ < φ = arctan(μ). Here, μ means the friction value.

Friction parameters govern non-reversing behavior:

Friction and gear shapes stop reverse motion. Every unit holds heavy items safely. No extra brakes are ever needed. Covered boxes protect internal gear parts. They keep power efficiency very high. Strong gearboxes stop sudden load drops. They protect valuable gear every day. Heavy-duty units handle tough factory jobs. The secondary setup gives steady power.

Perks and Limits of Worm Speed Cutters

Big Turning Power and Quiet Performance

Small boxes give strong turning force. This speed reducer runs very smoothly. It makes almost no noise at all.

Good makers use sharp grinding tools. Parts meet top European safety rules. Good building helps parts last long. It keeps heat under control well. It boosts work output for safety. Smooth gear teeth keep machines super quiet.

Rubbing Parts and Energy Loss

Parts slide together and rub constantly. The thread rubs the gear tooth. This rubbing motion wastes total power. Sliding contact causes most energy loss. Standard drives reach 50% to 90% power. Spiral gears waste less power. Rolling parts move much easier. Special builds help cut power loss. Every drive needs smooth parts.

Heat Control and Oil Care

Big factory jobs make much heat. You must cool down warm parts. Use cooling fans and clean oil. Synthetic oils lower overall heat. They keep machines working well. Oil makes tools last longer.

PAG oil saves 18% more energy. Synthetic SHC gives 8% to 9% power. Good oil cuts energy loss. Clean box walls let heat leave. Regular care saves your tools. Smart fluid care aids total power.

You get huge benefits from a worm gear reducer.

This special box gives right-angle drive power.

It makes strong turning force in small spaces.

The self-locking design stops backward movement.

It keeps heavy weights safe at all times.

Checking main rules helps pick the best gear:

Picking a good partner matters for your gear.

Changzhou Changyulong Reducer Co., Ltd. provides high-precision gearbox options, custom shaft configurations, and tailored OEM solutions for various industrial applications.

FAQ

How do you pick the right worm gearbox for your needs?

First, you match your speed ratio. Next, check your output torque. Look at your duty cycle too. Watch out for thermal limits. Measure small spatial constraints first. These right-angle driving units need space. Talk to experienced manufacturers today. Changzhou Changyulong Reducer Co., Ltd. can assist you. They offer custom shaft configurations. You get precise ratio options. Their team helps your machinery run best.

Why does a worm drive lock itself automatically?

The spiral worm screw turns first. It moves the worm wheel directly. Sliding friction makes this happen. The lead angle stays quite small. It is smaller than the friction angle. So, external loads cannot push back. The input shaft won't run in reverse. This mechanical design keeps heavy loads safe. It works without secondary braking systems.

What performance level can you expect from these units?

Efficiency ranges from 50% to 90%. Closed units hit these numbers easily. Sliding friction creates thermal energy. This action causes slight power losses. Always use good synthetic lubricants. Choose PAG oil for your machine. Buy high-precision ground gears instead. Gears with DIN 6 accuracy work well. They boost overall efficiency fast. They extend component service life too.

Where can you install an industrial worm gearbox?

Mount this compact gearbox anywhere. Use it in tight factory spaces. It handles right-angle power transmission well. Put it on conveyor belts next. It powers heavy security gates daily. Material lifts use it often. Industrial mixers need it too. The right-angle footprint fits tiny spots. It delivers high turning force easily. It excels at demanding operations.
